GSG Indicators

GSG Mechanical & Digital Indicators

GSG Logic Illuminate w/stand

Visual cue when screen turns green, yellow & red to indicate when approaching an out of tolerance condition.

Set your tolerance to your blue print call out and go. If you approach the high or low limit, the screen will turn yellow indicating your getting close to your tolerance limit. If you exceed your tolerance the screen will turn red.

Accessories:

Available with optional stand and tablet which will record and chart data.
The Logic EMS4 allows for the simultaneous connection of up to 4 devices (Indicators, Calipers, Micrometers, Probes, etc.), and supports both Mitutoyo Digimatic and Quadrature devices on all four ports.
GSG Mechanical Indicators
All GSG indicators are manufactured to last. Supplied standard with flat backs, all indicators are available with lug backs optional.
Design Features:
Heat-treated stainless steel racks, gears and pivots
Non-magnetic hairsprings
One piece forged brass case
Knurled bezels for easy, no-slip grip
Acrylic plastic crystals are non-yellowing, provide high scratch resistance
Fine, easy-to-read graduations on non-glare dials
Four-position back permits 90 degree dial positioning
Chrome plate finish
All GSG indicators are supplied with serial # labels

Group 1
Item # 125S0005G1

0-25-0 Dial in .0005 Increments with .125" of travel.
Available  with flat back or lug mount.


Group 2
Item # 025S0001G2

0-5-0 Dial in .0001 Increments with .025" of travel.
Available  with flat back or lug mount.

Group 2
Item # 500S001G2CG

0-100 Dial in .001 Increments with .500" of travel.
Available with flat back only.
*This indicator is for 92° chamfer gages only.

Group 2
Item # 1S001G2

0-100 Dial in .001 Increments with 1.000" of travel.
Available with flat back or lug mount.

GSG Digital Indicators

Every GSG digital indicator is SPC capable.
Design features:
Numeric, Analog & Numeric / Analog Displays
Incremental Measuring mode
SPC Cables - USB, MTI, RS232
Measuring system in English or Metric
Travel Reverse
Floating Zero
T.I.R. Measuring with Low & High Storage Recall
User Tolerance Settings ( High / Low)
Up to 4 User Changeable Resolutions
Inch / Metric display conversion
Maximum Reading Hold
Minimum Reading Hold
Display / Freeze Reading Hold
Absolute / Preset Measuring Mode

GSG Digital CG

Constructed for use with chamfer gages we can supply it programmed for any angle you desire.
Available on both .500" & 1.00" Travels.

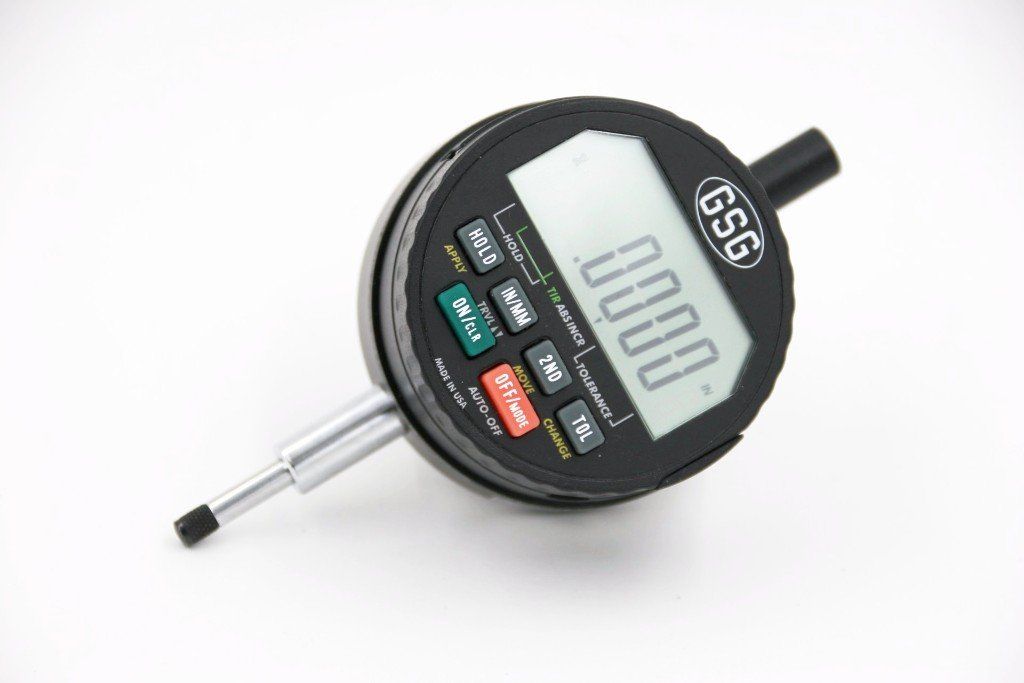

GSG Logic IQ

1.00" of Travel displayed in .0001" increments with metric at the touch of a button.
Logic IQ, featuring large, easy to read numbers. The Logic IQ is loaded with basic and advanced features and is easy to operate.

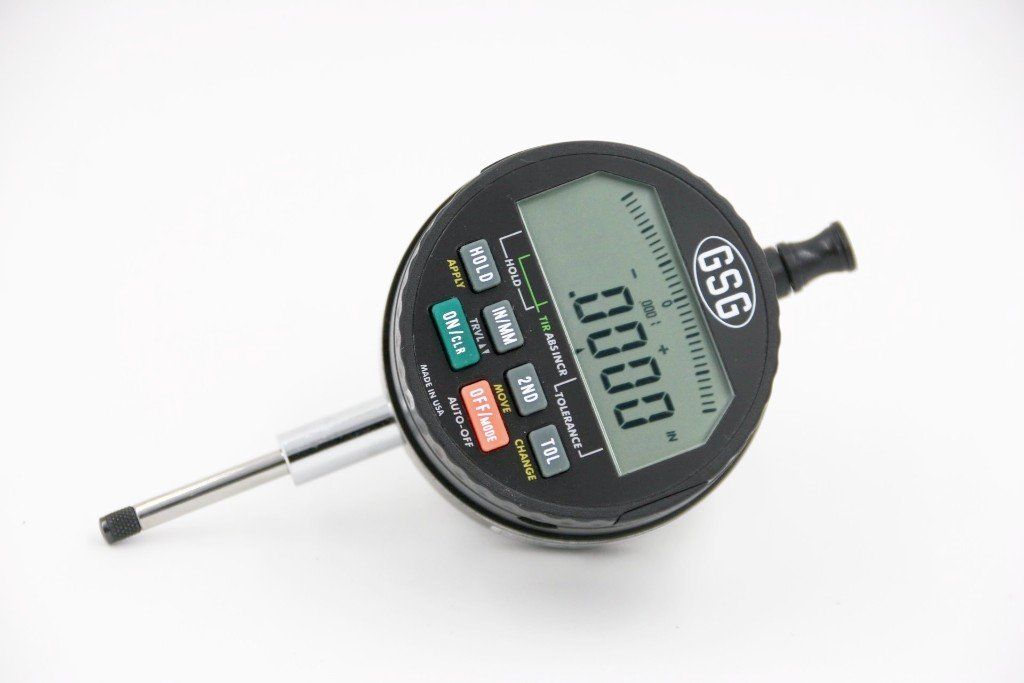

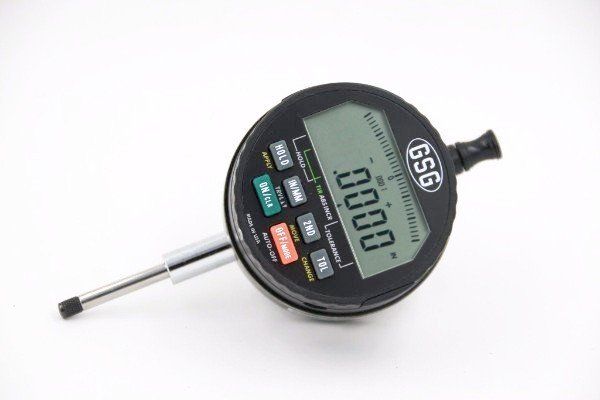

GSG Logic ALG

Features a dual display with numeric and analog views. LCD can be programmed to view both numeric and analog at the same time, numeric only, or analog only. Loaded with basic and advanced features that are easy to operate.

GSG Logic Illumination
Item # 1D0001-LI

1.00" of Travel displayed in .0001" increments with metric at the touch of a button. The 3-color display  is excellent for GO / NO-GO readings, and features a dual display with numeric and analog view on the display.

"Helping our customers, measure their success"

GSG is proud to partner with CDI of Chicago, Ill.  GSG is proud to announce it has partnered with Chicago Dial Indicator, a leader in precision measuring products since 1932 to manufacture it's line of indicators. To learn more visit our "partners" page or Click the button below.
